Al-Ni Phase Diagram

  Thermodynamic Assessment

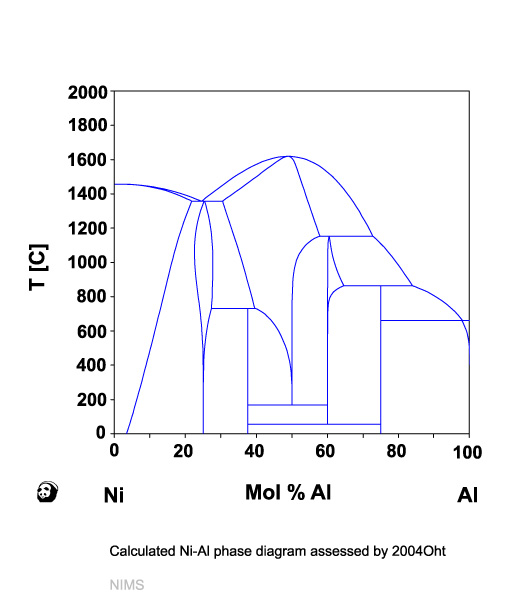

[2004Oht] Thermodynamic analysys of the Co-Al-C and Ni-Al-C systems by incorporating
          ab initio energetic calculations into the CALPHAD approach
          H.Ohtani,M.Yamano,M.Hasebe; CALPHAD, 28 (2004), 177-190.
          TDB File    Phase diagram

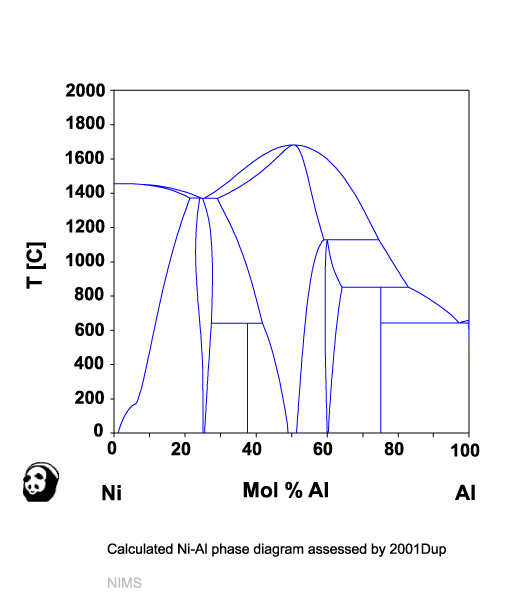

[2001Dup] Thermodynamic Re-Assessment of the Ternary Al-Cr-Ni.
          N.Dupin, I.Ansara, B.Sundman : CALPHAD, 25 (2001), 279-298.
          TDB File    Phase diagram

[1999Hua] Thermodynamic properties of the Ni-Al-Cr system.
          W.Huang, Y.A.Chang : Intermetallics, 7 (1999), 863-874.
          TDB File    Phase diagram

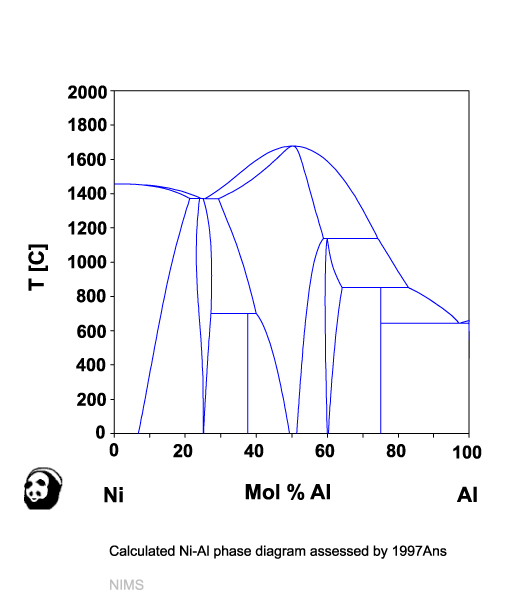

[1997Ans] Thermodynamic assessment of the Al-Ni system.
          I.Ansara, N.Dupin, H.L.Lukas, B.Sundman : J.Alloys and Compounds, 247 (1997), 20-30.
          TDB File    Phase diagram


Note: Some of TDB files above are "only" for PANDAT.
       For calculations with Thermo-Calc, lines must be shorter than 80 characters,
       and thus be edited.


Sublattice Configulations
L12 B2
[2004Oht]   SL- (Al,Ni)3(Al,Ni)1   SL- (Al,Ni)0.5(Al,Ni)0.5
[2001Dup] MSL- (Al,Ni)0.75(Al,Ni)0.25 MSL- (Al,Ni,Va)0.5(Al,Ni,Va)0.5
[1999Hua] MSL- (Al,Ni)0.75(Al,Ni)0.25   SL- (Al,Ni)1(Ni,Va)1
[1997Ans] MSL- (Al,Ni)0.75(Al,Ni)0.25   SL- (Al,Ni)1(Ni,Va)1




  Related Articles

[2005Him] Phase Equilibria and g'-L12 Phase Stability in the Ni-rich Portion of Ni-Fe-Si and Ni-Fe-Al Systems
          Y.Himuro, Y.Tanaka, I.Ohnuma, R.Kainuma and K.Ishida : Intermetallics, 13 (2005) 620-630.

[2001Dup] A Thermodynamic Database for Ni-base Superalloys,
          N.Dupin and B.Sundman : Scand. J. Metall., 30 (2001) 184-192.

[1999Dup] On the Sublattice Formalism Applied to the B2 Phase,
          N.Dupin and I.Ansara : Z. Metallkd., 90 (1999) 76-85.

[1982Cha] Thermodynamics and Defect Structure of Intermetallic Phases with the B2 (CsCl) Structure,
          Y.A.Chang and J.P.Neumann : Prog. Solid St. Chem., 14 (1982) 221-301.
