Al-Fe Phase Diagram
Thermodynamic Assessment
[1989Sei] M.Seiersten, unpublished work (1989).
Available in SSOL2 and BIN database.

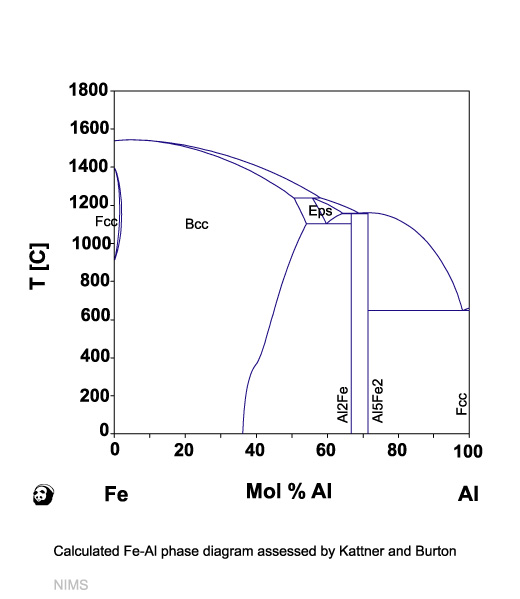

[1993Kat] U.R.Kattner and B.P.Burton, Phase Diagrams of Binary Iron Alloys, (Ed.)H.Okamoto,
ASM International, Materials Park, OH, 12-28 (1993).
TDB File Phase diagram

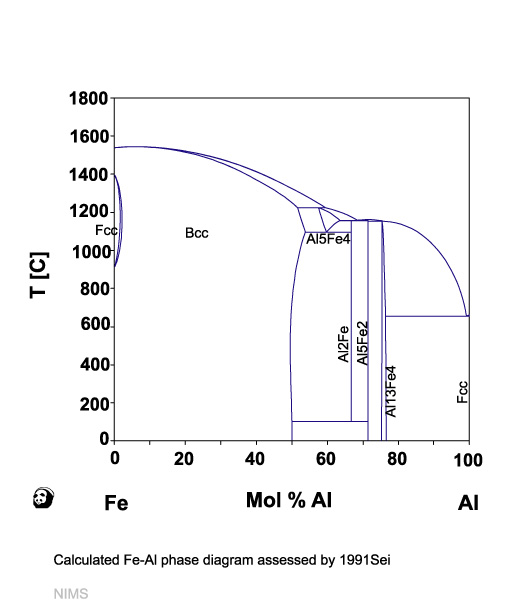

[1991Sei] M.Seiersten, COST 507, Thermochemical database for light metal alloys, vol.2
(Ed.) I.Ansara, A.T.Dinsdale, M.H.Rand, (1998).
Available in COST2 database.
TDB File Phase diagram
Related Articles
[1999Liu] Thermodynamic assessment of the Al-Fe-Si system
Z.-K.Liu, Y.A.Chang: Metall. Mater. Trans. A, 30A (1999) 1081-1095.
[2001Ike] Phase equilibria and stability of ordered BCC phases in the Fe-rich portion
of the Fe3Al system
O.Ikeda, I.Ohnuma, R.Kainuma, K.Ishida, Intermetallics, 9 (2001) 755-761.
[2003Bal] Thermodynamic assessment of the quaternary system Al-Fe-Mn-Si in the Al-rich corner
E.Balitchev, T.Jantzen, I.Hurtado, D.Neuschutz, CALPHAD, 27 (2003) 275-278.
[2003Mie] Thermodynamic description of the Cu-Al-Fe system at the Cu-Fe side
J.Miettinen, CALPHAD, 27 (2003) 91-102.
[2004Oht] Thermodynamic analysis of the Fe-Al-C ternary system by incorporating ab initio
energetic calculations into the CALPHAD approach
H.Ohtani, M.Yamano, M.Hasebe, ISIJ Int., 44 (2004) 1738-1747.
ASM Binary Alloy Phase Diagrams, second edition, (Ed.)T.B.Massalski
ASM International, Materials Park, OH, (2001) 147-149.
Phase Diagrams of Binary Iron Alloys, (Ed.)H.Okamoto,
ASM International, Materials Park, OH, (1993) 12-28.
ASM Desk Handbook Phase Diagrams for Binary Alloys, (Ed.)H.Okamoto
ASM International, Materials Park, OH, (2000).
