Al-Cr-Ni (NIMS)

Al-Cr-Ni Ternary Phase Diagram

Thermodynamic Assessments

[2001Dup] Thermodynamic Re-Assessment of the Ternary System Al-Cr-Ni,
          N.Dupin, I.Ansara, B.Sundman, CALPHAD 25 (2001) 279-298.

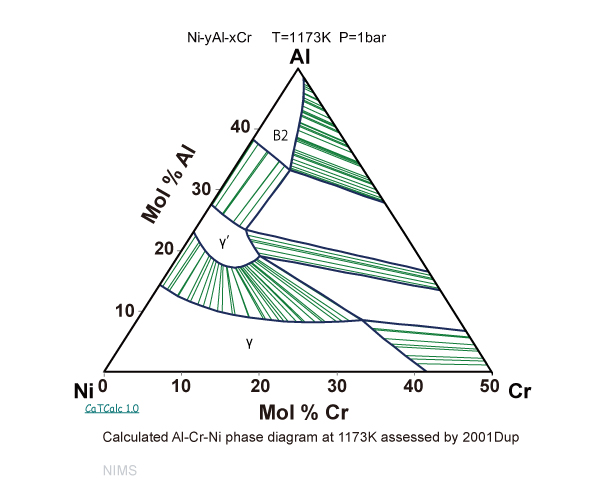

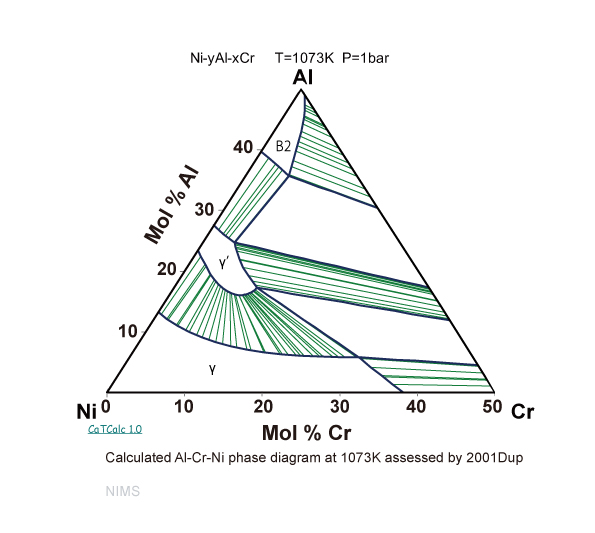

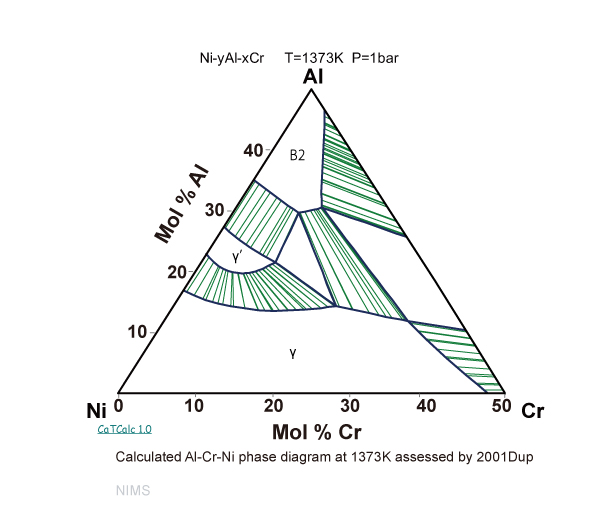

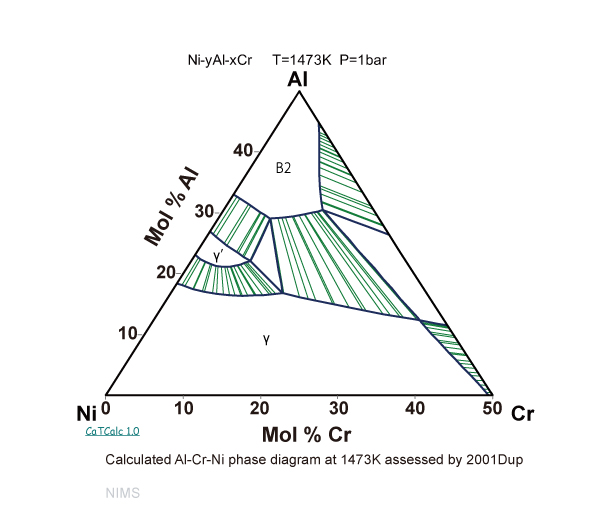

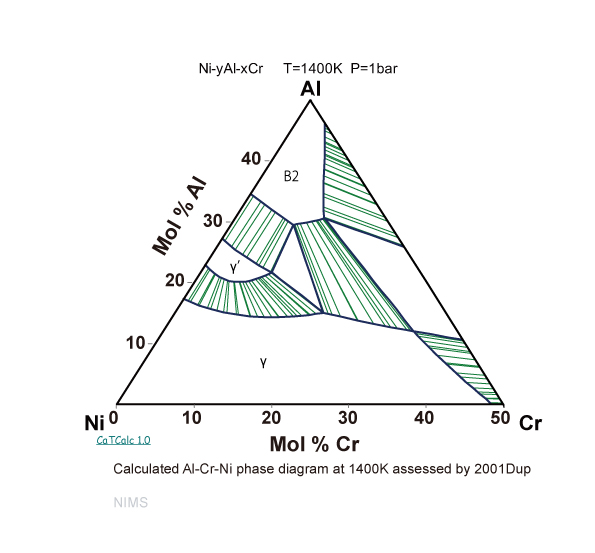

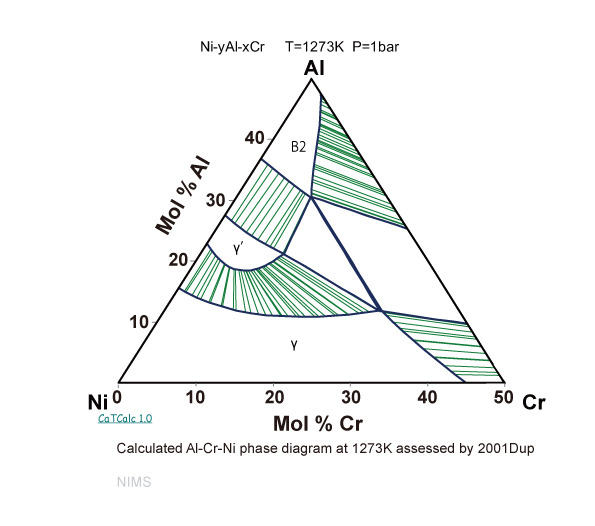

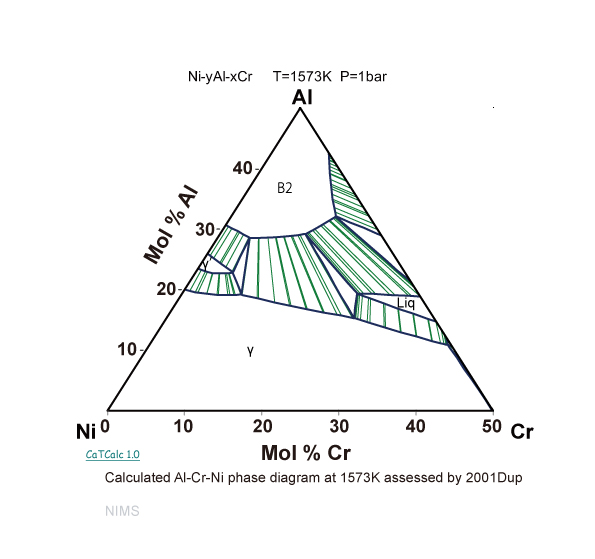

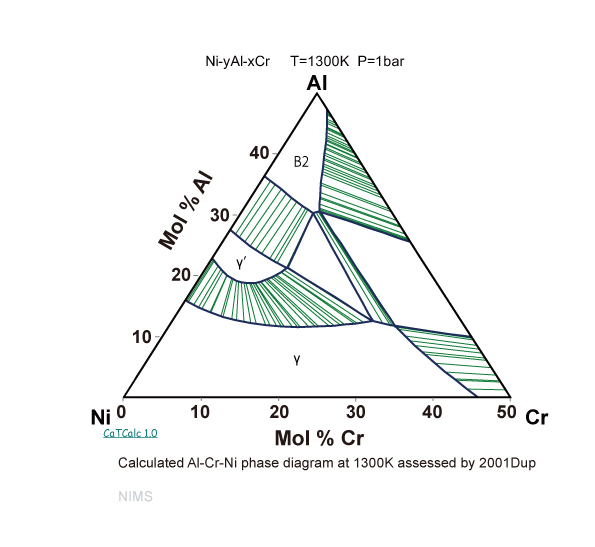

          TDB File        Isothermal section 1073K  1173K  1273K  1300K  1373K  1400K  1473K
